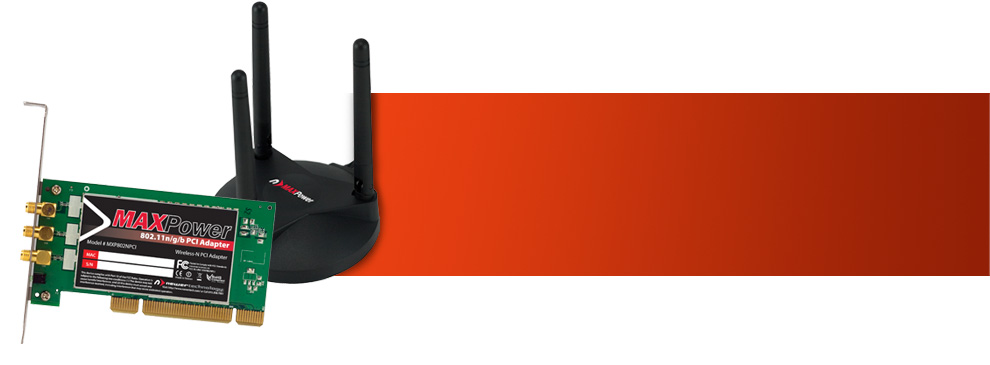

MAXPower 802.11n/g/b Wireless PCI Adapter

MAXPower 802.11n/g/b Wireless PCI Adapter
Add Wireless High Speed Connectivity to your desktop computer with Plug and Play ease
MAXPower 802.11n/g/b Wireless PCI Adapter
– Easy to connect via USB, Plug and Play Operation.
– Ideal for high data rate needs like video streaming.
– Optimal solution for Mac Desktop user.
– Security features protect your desktop computer.
Mac and PC compatible
2 Year Warranty
Experience the freedom of the latest
802.11n wireless technology!
Simply install the MAXPower Wireless PCI Adapter into your desktop computer’s internal PCI slot to start sharing Internet access, media files and network resources such as printers and external storage from the furthest room in your home or office.
  • MAXimum Reception Quality
    MAXimum Reception Quality
    Moveable antenna base offers positioning convenience for optimal reception quality.
  • MAXimum Security and Privacy
    MAXimum Security & Privacy
    The latest encryption and security features protect your desktop computer from hackers and unauthorized users.
  • MAXimum Compatibility
    MAXimum Compatibility
    Backward compatible with 802.11g/b wireless standards to maintain existing network investment.
Add Wireless Connectivity to your desktop computer with Plug and Play ease!
Fully Mac OS X Supported for Quick and Easy Set-Up

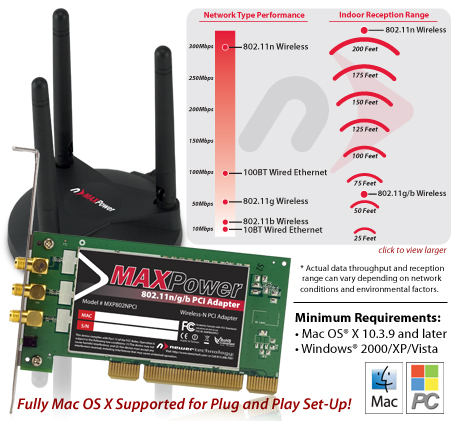

Network Type Performance
& Indoor Reception Range**

Network Type Performance and Indoor Reception Range
  • Fully Mac OS X supported with with on-screen menu set-up and CD-ROM with user guide, quick installation guide, and user manual documentation.
  • 32-bit interface fits standard internal PCI card slot.
  • IEEE 802.11n draft 2.0 compliant.
  • Up To 4x greater range with MIMO technology.
  • Up to 300Mbps data transmission rate.
  • Backward compatible with 802.11g/b.
  • Moveable antenna base.
  • Designed to stream movies, music, photos, HD video, VoIP phone calls, and large files.
  • Advanced security features: 64/128bit WEP, WPA, WPA2.
  • Mac OS X 10.3.9 users will need to download the latest driver available here (ZIP)
  • 2 Year Warranty Register Here
Certifications
  • FCC
  • CE
Temperature Operating
  • 32ºF to 131ºF
Temperature Storage
  • -4ºF to 176ºF
Humidity
  • 90%, (non-condensing)
FCC ID
  • UNH-MXP802NPCI
Warranty
Output Power
  • 11g: 14.5dBm@54Mbps
  • 11b: 17.5dBm@11Mbps
  • 11n (20MHz): 12.5dBm@144Mbps
  • 11n (40MHz): 12.5dBm@270Mbps
Frequency Band
  • 2.4000~2.4835GHz
  • (Industrial Scientific Medical Band)
Dimensions
  • 4.92" x 4.72" x 0.79"
  • (125 x 120 x 20mm)
Weight
  • 2.65 ounces (75.13grams)
Standards
  • IEEE draft 802.11n, 802.11b/g
Chipset
  • Ralink RT2860 (MAC/BBP ) and RT2820 (RF)
LEDs
  • Activity
Data Rate
  • 11b: 11, 5.5, 2, 1 Mbps per channel
  • 11g: 54, 48, 36, 24, 18, 12, 9, 6Mbps per channel
  • 11n (20MHz): 144, 130, 115, 86, 57, 43, 28, 14Mbps
  • 11n (40MHz): 270, 240, 180, 120, 90, 60, 30Mbps
*Actual data throughput and reception range can vary depending on network conditions and environmental factors.

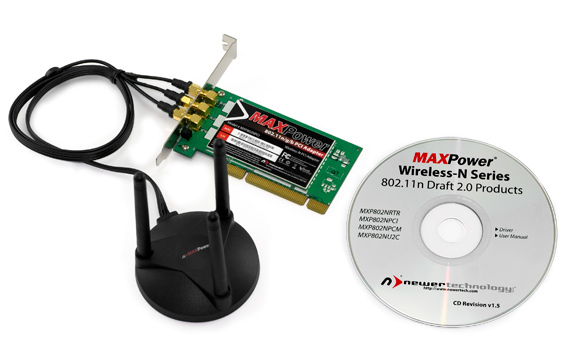

MAXPower 802.11n/g/b Wireless PCI Includes
  • Newer Technology MAXPower 802.11n/g/b Wireless PCI Adapter
  • Moveable antenna base
  • CD-ROM (User Guide & Utility)
Learn how to find your Mac's model IDThis product is compatible with...
Power Macintosh G3 - all models, entire series
Power Macintosh G3 - all models, entire series
Power Mac G4 - all models, entire series
Power Mac® G4 - all models, entire series
PowerMac G5
Power Mac G5
(June, 2003)
Model ID: PowerMac7,2
1.6GHz, 1.8GHz, dual 1.8GHz, dual 2.0GHz
PowerMac G5
Power Mac G5 (June 2004)
(June, 2004)
Model ID: PowerMac7,3
dual 1.8GHz, dual 2.0GHz, dual 2.5GHz
PowerMac G5
Power Mac G5 (Late 2004)
(October, 2004)
Model ID: PowerMac9,1
1.8GHz
PowerMac G5
Power Mac G5 (Early 2005)
(April, 2005)
Model ID: PowerMac7,2
dual 2.0GHz
PowerMac G5
Power Mac G5 (Early 2005)
(April, 2005)
Model ID: PowerMac7,3
dual 2.3GHz, dual 2.7GHz
PowerMac G5
NOT COMPATIBLE
Power Mac G5 (Late 2005)
(October, 2005)
Model ID: PowerMac11,2
2.0GHz, 2.3GHz, dual 2.5GHz
