NewerTech® - Voyager S2 “Quad Interface” FireWire® 800/400/USB 2.0/eSATA

NewerTech Voyager S2
“Dual Interface”USB 2.0/eSATA SATA I/II Hard Drive Docking Solution

Whether you're on a data recovery mission or just want to check the contents of an older swapped out hard drive, NewerTech Voyager is the easiest, most convenient way to access data from any Serial ATA (SATA) hard drive.

Just insert any standard 2.5" or 3.5" SATA I/II hard drive with up to 2.0TB capacity into the compact docking base and select one of the interfaces supported by your Mac® or PC for the fastest data transfer performance. Then, start reading and/or writing data to the docked hard drive. There’s nothing else to install or configure!

Saves Time & Money
With its Plug and Play design, the NewerTech Voyager saves you the time of installing a hard drive into a computer or the cost of an external enclosure. Now you can think of bare SATA drives with the same convenience and instant access benefits as flash memory cards…but with huge gains in storage capacity!

Hot-Swap Ready
Have multiple hard drives you need to access? No problem, NewerTech Voyager’s unique design makes hot-swapping SATA hard drives a breeze*. When finished using your drive, simply pull up on it or use the eject lever for 3.5" drives for quick and effortless removal.

Ideal Solution For Photographers & Videographers
Instead of needing multiple enclosures and power supplies for every archived hard drive, NewerTech Voyager makes accessing your valuable hard data a breeze. Just slide in your hard drive, find the desired image or clip, and then return the hard drive to your storage safe.

Truly Plug and Play
With all supported interface connector cables included, an auto-switching power supply for worldwide compatibility, and flexible operating system compatibility, the NewerTech Voyager can travel your data universe with ease.

*Use of eSATA interface requires system reboot in order to recognize hard drive.

Features:

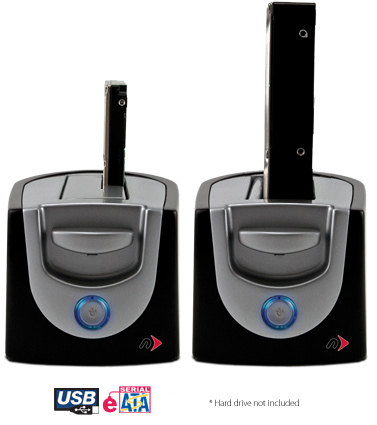

Supports all 2.5" and 3.5" SATA I/II hard drives up to 2.0TB
"Dual Interface" for maximum data transfer rates and system compatibility
Data transfer rates up to 3.0Gb/s (300MB/s)
Hard drive eject lever for safe removal of 3.5" drives
Hot-Swap functionality for fast access of multiple hard drives*
Weighted base and non skid rubber feet for stable operation
Status LED:
Blue = Power
Flashing Red = Disk Activity
Compact design…measures 3.937" x 5.95" x 3.169" inches
Whisper Quiet operation…no cooling fan needed
Plug and Play with Macs and PCs
All interface connection cables included
RoHS Compliant
One year warranty
CE approved

*Use of eSATA interface requires system reboot in order to recognize hard drive.

Transfer Rates:

eSATA: up to 3.0Gb/s (or 300MB/s)
USB 2.0: up to 480Mbps (60MB/s)

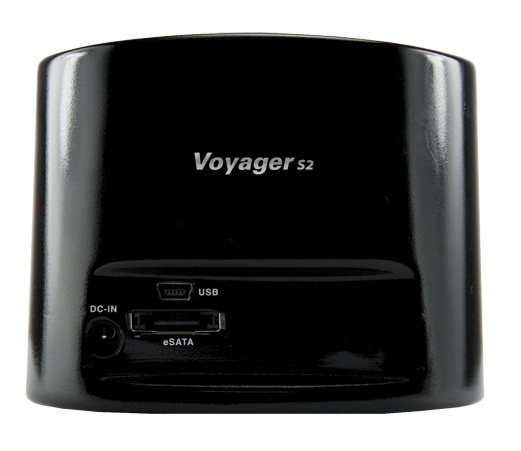

rear of voyager Click on image to enlarge...

Newer Technology Voyager S2

• User Manual

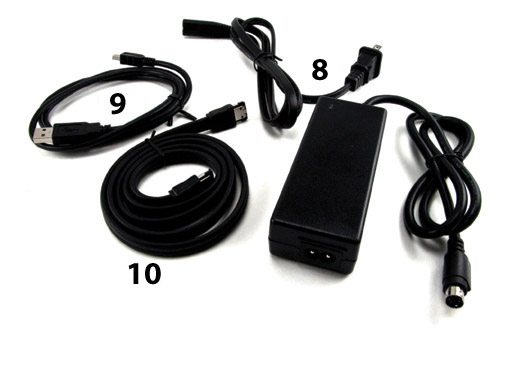

External Auto-Switching US/Intl. UL Listed 100-240V AC/ 50-60Hz, 12V/2A Output
36" High Quality Double Shielded USB 2.0/1.1 connecting cable
36" High Quality Double Shielded eSATA connecting cable

Voyager S2

Bridge Chipset

Jmicron 20336

Features

Status LED:
Blue = Power
Flashing Red = Disk Activity

RoHS Compliant

FCC, CE approved

Material

ABS black plastic with non-skid rubber feet

Interface/Ports

(1) eSATA port

(1) USB 2.0/1.1 Mini-B port

Power Supply

External Auto-Switching US/Intl. UL Listed 100-240V AC/ 50-60Hz, 12V/2A Output

Dimensions and Weight

3.937" x 5.925" x 3.169" (W x D x H), 1.32 lbs. (without drive)

Warranty

One year warranty Register

Compatibility

Macintosh Requirements:
Macintosh OS 8.6 to 9.2.2, OS X 10.2.x or later, and an available USB or eSATA port.

Windows Requirements:
Windows Vista, XP, 2000, NT, 98, and an available USB or eSATA port.
