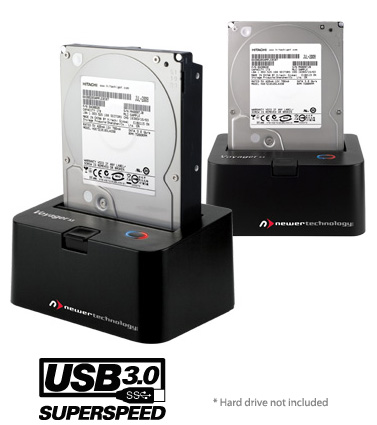

NewerTech® - Voyager S3 ‘SuperSpeed’ USB 3.0/2.0 Interface Solution Drive Dock for 2.5” and 3.5” Serial ATA

NewerTech Voyager S3
‘SuperSpeed’ USB 3.0/2.0 Interface Solution Drive Dock for 2.5” and 3.5” Serial ATA

Whether you're on a data recovery mission or just want to check the contents of an older swapped out drive, the NewerTech Voyager is the easiest, most convenient way to access data from any Serial ATA (SATA) drive.

Just insert any standard 2.5" or 3.5" SATA I/II Drive into the compact docking base and plug and play into any Mac® or PC for the fastest data transfer performance. Then, start reading and/or writing data to the docked Drive. There's nothing else to install or configure!

Saves Time and Money
With its Plug and Play design, the Voyager saves you the time of installing a drive into a computer or the cost of an external enclosure. Now you can think of bare SATA drives with the same convenience and instant access benefits as flash memory cards... but with the huge gains in storage capacity!

Hot-Swap Ready
Have multiple drives you need to access? No problem, Voyager's unique design makes hot-swapping SATA drives a breeze. And the eject push button safely disconnects either size drive for quick and effortless removal.

Ideal Solution For Photographers and Videographers
Instead of needing multiple enclosures and power supplies for every archived drive, Voyager makes accessing your valuable data a breeze. Just slide in your drive, find the desired image or clip, and then return the drive to your storage safe.

Truly Plug and Play
High quality USB 3.0/2.0 connection cable included, an auto-switching power supply for worldwide compatibility, and flexible operating system compatibility, the NewerTech Voyager can travel your data universe with ease.

Note: Actual speed for any interface is dependent upon the drive and host controller used.

Features:

Supports all 2.5" and 3.5" SATA I/II Drives up to 4.0TB
USB 3.0 for maximum data transfer rates and fully backward compatible with USB 2.0 for system compatibility
Data transfer rates 5 Gbps, up to 500MB/s
Push button drive eject for safe removal
Hot-Swap functionality for fast access of multiple SATA drives
Weighted base and non skid rubber feet for stable operation
2-Color Status LED:
Left side Blue = Power
Right side Flashing Red = Disk Activity
Compact design…measures 5.28" x 3.70" x 2.68" inches
Whisper Quiet operation…no cooling fan needed
Plug and Play with Macs and PCs
High quality USB 3.0/2.0 connection cable included
RoHS Compliant
One year warranty

Voyager S3

Drive Type Supported

SATA I (1.5Gb/s) and SATA II (3.0Gb/s)

Bridge Chipset

LucidPort USB300REV2

Interface/Ports

One USB 3.0 port, fully backward compatible with USB 2.0

Supports

Serial ATA 1.5G/3G/6G (SATA I/II/III) Drives of 2.5" and 3.5" types and up to 4.0TB.

Data Transfer Rates

USB 3.0 SuperSpeed 5 Gbps, up to 500MB/s

Material

ABS black plastic with non-skid rubber feet

Dimensions and Weight

5.28" x 3.70" x 2.68" (W x D x H) - 134.11mm x 93.98mm x 68.07mm
1.35 lbs. (.61kg)(without drive)

Power Supply

External Auto-Switching US/Intl. UL Listed 100-240V AC/ 50-60Hz, 12V/2A Output

Warranty

One year warranty Register

Compatibility

Macintosh Requirements:
Macintosh OS 8.6 to 9.2.2, OS X 10.2.x or later, and an available USB 3.0/2.0 port.

Windows Requirements:
Windows Vista, XP, 2000, NT, 98, and an available USB 3.0/2.0 port.

Linux Requirements:
Linux compatible via supported the USB interface.
